Keil MDK is the complete software development environment for a range of Arm Cortex-M based microcontroller devices. MDK includes the µVision IDE and debugger, Arm C/C compiler, and essential middleware components. Keil software 1. Keil software 2. Open keil software: 3. Go to Projects in the Menu and select new μ Vision project 4. Create a folder in your local drive and in that create new file in the format of.c Ex: shiva.c 5.

Hi colleagues I started a week using the ARM Keil uVision5 due to a project from a client that he wants me to modify. The previous programmer who did the project disappeared.

Keil Software Description

My question: The client sent all the firmware files, but this one giving error that is missing some .h files. He sent me a lib too, I edited and saw a lot of strange characters and in that mix I saw the definitions of those files. They are defined within lib. How do I add this lib in the project to resolve these pendencies?

Note: The file with uvprojx extension did not come, so I had to create a new project I added the files that came from etc.

Also has a reminder in one of the files saying that to compile I should use:

Microcontroller TM4C123FH6PMT

compile definitions:

rvmdk PART_LM4F231H5QR TARGET_IS_BLIZZARD_RA1 _DEBUG PLACA_NOVA TEST

Keil software introduction

Driver.lib Library was compiled from the driver provided by Texas Instruments.

Many thanks Cesario

In this tutorial, we will look at how to use Keil uVision5 for LPC2148 ARM7 Microcontroller. This tutorial is requested by one of our fellow readers. There are many folks want to migrate from uVision4 to Keil uVision5. It’s been years now, Keil-MDK5 has been released. I remember when I tried my hands first time with Keil uVision5. It took me for a while to figure out why LPC2148 is not listed in “select device for target” menu while creating new project. I am sure this post will answer all of your questions regarding Keil-MDK5.

Also, we will Create Fresh New Project using Keil uVision5 for LPC2148 ARM7 Microcontroller. Anyways it’s very simple we only have to follow few tricky steps while installing Keil uVision5 for LPC2148 ARM7 Microcontroller. If you’re already using Keil uVision4 then you might be familiar with installation of Keil uVision5 which is similar. For first time users, we need to download setup Click Here. Make sure to fill registration form while downloading setup file. All the information such as name and email address you may need to provide while using Keil uVision5 for first time. Let’s download Keil uVision5.

Once we fill registration form we will be directed to following page. Just click on .EXE file and download setup.

KeilSoftware
Once we’re ready with download. We need to install Keil uVision5. After installation of Keil uVision5 here comes tricky part. At this point if we try to create fresh new project using Keil uVision5 for LPC2148 ARM7 Microcontroller. We would not find LPC2148 or NXP into device list. To get list of all ARM7 microcontroller chips into device list we need to install software packs which will support LPC2148 ARM7 Microcontroller. Although in uVision4 we need not to do this but in Keil uVision5 we must install software packs prior to create project for our target chip. Here is the link to get software packs: http://www2.keil.com/mdk5/legacy

I believe at this point we all have successfully installed Keil uVision5 and legacy software packs for ARM7 Microcontrollers

Keil Software Company

Keil software

Create Project using Keil uVision5 for LPC2148 ARM7 Microcontroller:

  • Create a folder on desktop

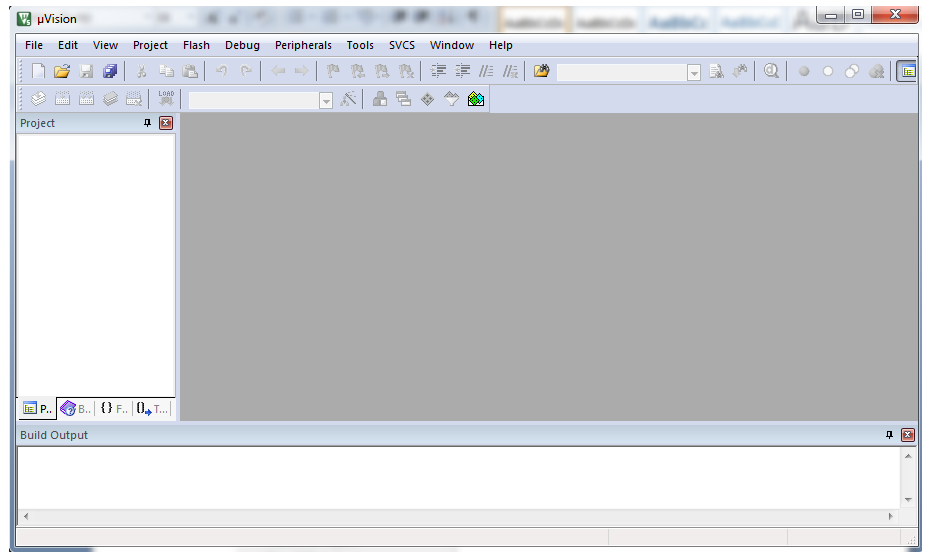

  • Open Keil uVision5 Application
  • Go to Project –> New uVision Project

Keil Software Uses

  • Give Name to Project e.g. “test” –> Save (Browse this project file into newly created folder on desktop).

Keil Software Introduction

  • We will get popup box Select Device for Target “Target1”. There will be a drop down menu where we have to choose Legacy Device Database [no RTE]. We notice that extended list of device families will be added into left pane of popup box.
Keil Software
  • Just search for our target chip in search box, which is NXP LPC2148 in this case. Then Select LPC2148 from the list and hit on OK.
  • Next step is to add startup file, simply hit on Yes. Workplace is ready to write code for application development.
  • Now we need to add c file to write simple application. Go to File –> New –> We will get text file Save As this text file as main.c.
  • At this point we need to add this main.c file to our project tree. Right click on Target1 and click on Manage Project Items…
  • On a dialog box hit on Add Files and select main.c file and hit on Add button. Just click close and then hit on Ok. At this point main.c file is listed into source tree of project pane. Now we’re ready to write code.
  • Once we build our project, we will generate .HEX file to load onto LPC2148 ARM7 Microcontroller.
  • To find HEX file, we need to look into Project Folder –> Objects folder –> .HEX file.

Keil Software Wiki

We hope this tutorial will guide you through how to create project using Keil uVision5 for LPC2148 ARM7 Microcontroller. The procedure remains same even for other Microcontroller architectures such as ARM7, ARM9, and Cortex-R. Just make sure that you have installed proper legacy software packs for your target device. If in case you have any question regarding Keil uVision5. Please feel free to post into comment section. Thank You!!!
